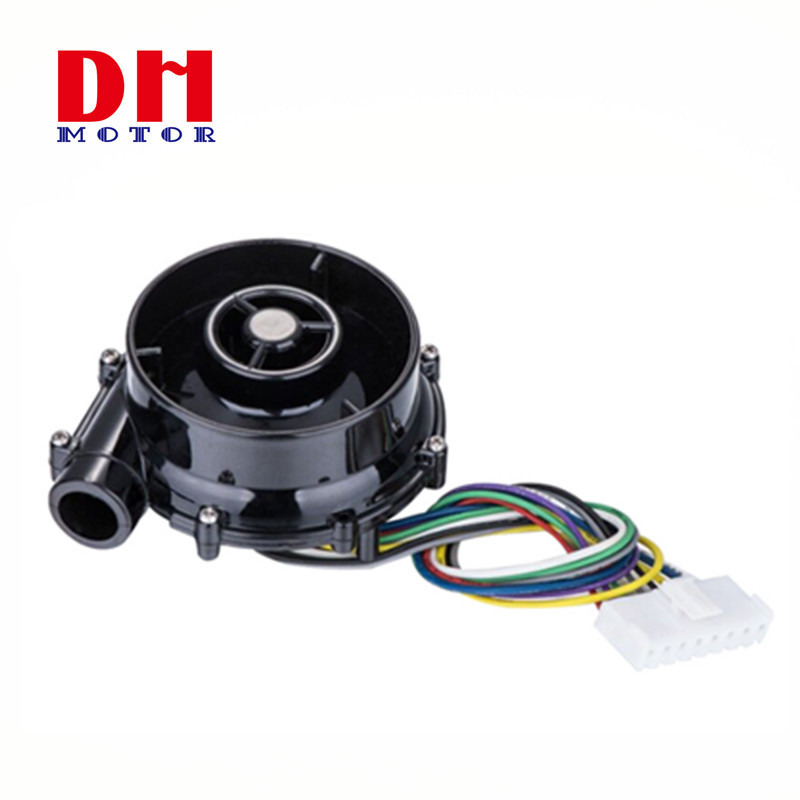

Factory 24v DC 300LPM Airflow Mini Centrifugal Fan Brushless Air Blower

2 Pieces
MOQ
$33.00(2 - 999 Pieces) $21.00(>=1000 Pieces)
Price
Factory 24v DC 300LPM Airflow Mini Centrifugal Fan Brushless Air Blower
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Electric Current Type: DC
Blade Material: Plastic
Mounting: FREE STANDING
Model Number: Dehe7040-24-V200
Voltage: 24vdc
Warranty: 1 Year
After-sales Service Provided: Online Support
Product Name: Centrifugal Brushless Air Blower
Motor: Brushless DC Motor
Rated Voltage: 24VDC
Air Flow: 300LPM Airflow
Size: D70mm *H37mm
Weight: 80g
Housing Material: PC
Bearing Type: NMB Ball Bearing
Life Time: More Than 12000hours(under 25 Degree C)
Static Pressure:: 6.8kPa
Certification: Ce, RoHS
Basic Infomation
Certification: ce, RoHS
Model Number: Dehe7040-24-V200
Payment & Shipping Terms
Product Description
Product Description

24v DC 300LPM Airflow Mini Fan Centrifugal Brushless Air Blower

Product Detail Data

Product Name Centrifugal Brushless Air Blower
Rated Voltage 24VDC
Max Power Consumption 68W
Life Time (MTTF) 10,000 hours
Weight 80g
Bearing NMB Ball Bearing
Noise 68dB
Insulation Class F
Driver Outer
Speed Control PWM OR 0-5V

Free blowing Working point
Speed Current Airflow Speed Current Airflow Pressure Speed Current Pressure
RPM A M3/H RPM A M3/H kPa RPM A kPa
36,600 2.73 22 40,649 1.89 8.8 5 45190 0.84 6.7

Dimension
